TL-425
- Overview
- Application
- Spec & Assembly
| Information | |
| Model | TL-425 |
| Dimensions(mm) | 425W×455D×100H Excluding feet height |
| 425W×455D×110H Including feet height | |
| Dimensions(inch) | 16.8W×17.9D×3.9H Excluding feet height |
| 16.8W×17.9D×4.3H Including feet height | |

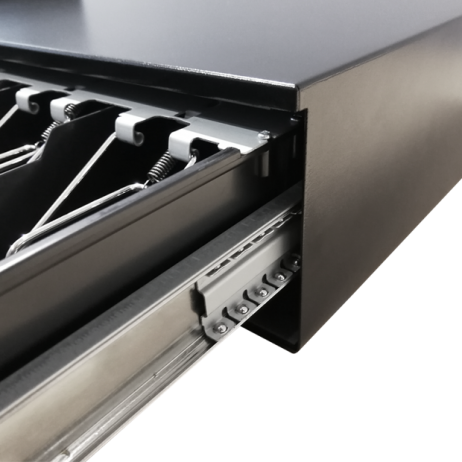

| Mechanism | Ball Bearing Slide |
| Material | Metal body with plastic drawer front |
| Metal Drawer | Yes |
| Media Slot | 1 |
| Cash Tray | 4/5 bills, removable |
| Coin Tray | 8 coins, adjustable and removable |
| Voltage | 12V/24V or customized |
| Connector | RJ11 or customized |
| Color | Black/ beige or customized |
| Lockset | 3 positions |
| Net Weight | 10.4Kg |
| Option | Micro Switch |
| Lockable Cover of Cash Tray | |
| Under-mounting Bracket | |
